Solar microgrid with energy management for a museum, Xiong'an, China

Microgrid · Public building · 21 kWp solar + 50 kWh battery + EMS · In operation

The project

A museum in Xiong'an New Area wanted a microgrid that could run on its own or alongside the grid, with little or no staff attention.

Component Specification
Solar PV 21 kWp
Inverters 4 × 5 kW
Battery 50 kWh LFP
Control Energy management system (EMS) coordinating solar, battery and grid
Output About 38,600 kWh per year, used on site, surplus stored

What it shows

  • Island or grid-tied. The microgrid runs on its own or alongside the grid, and switches automatically.
  • EMS control. One system balances solar, battery and grid, with real-time monitoring and alarms.
  • Hands-on commissioning. Our engineers surveyed the site and commissioned the system in person.
Battery and PCS cabinets outside the museum
Battery and PCS cabinets outside the museum

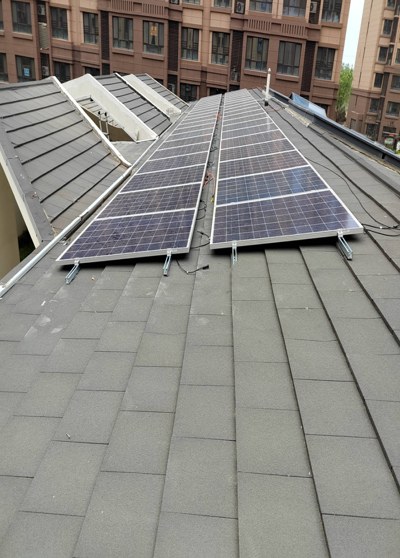

Rooftop solar array
Rooftop solar array

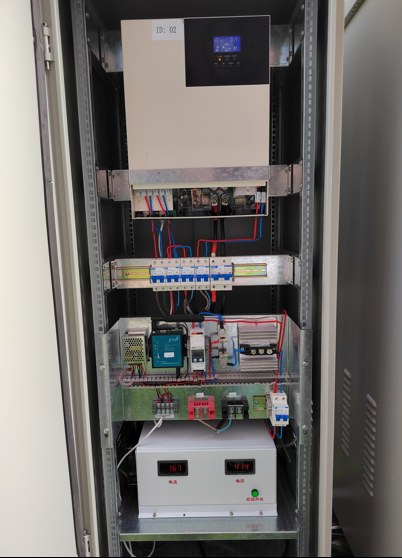

Inside a cabinet: hybrid inverter, protection and battery monitor
Inside a cabinet: hybrid inverter, protection and battery monitor

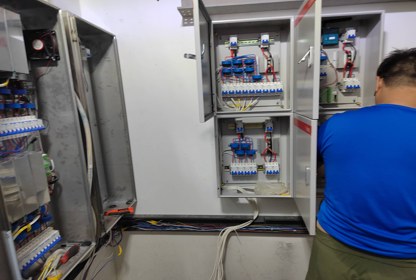

Wiring the distribution boards
Wiring the distribution boards

The same EMS approach runs in our larger hybrid systems for factories.
